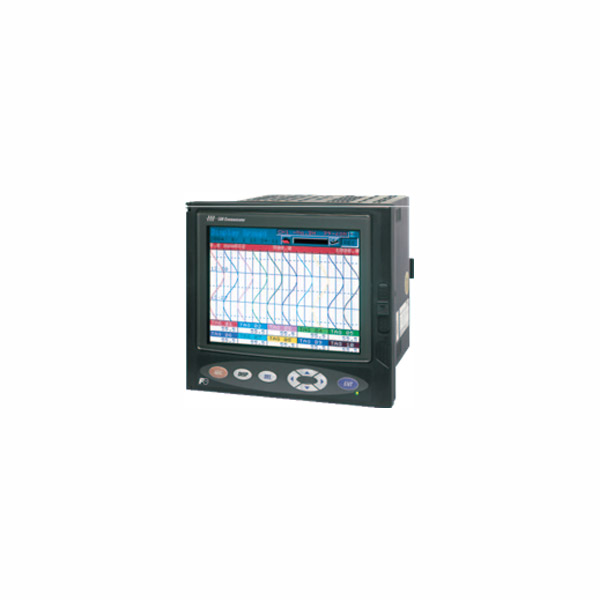

Datalogger – Fuji PHL
Fuji PHL is a paperless recorder that displays measured data on the LCD (5.7” TFT color) in real time and stores data in CompactFlash.
The type of input such as thermocouple, resistance bulb, D.C. voltage (current), etc. can be arbitrarily set to 18 channels at the maximum.
The data stored in CompactFlash can be regenerated on the screen, and the use of supplied support software allows the data to be regenerated on a PC screen.
The data recorded in ASCII format can be directly read in a spreadsheet such as Excel, which facilitates the processing on a PC. (The data recorded in binary format cannot be read in.)
| Number of input points: | 9 points or 18 points (Can be selected at the time of purchase) |
| Input circuit: | Input mutual isolation
Resistance bulb measured current: about. 1 mA |
| Measuring cycles:
|
9 or 18 points….100ms cycles |
| Recording cycle: | 1 sec to 12 hours |
| Input types: | Thermocouple, resistance bulb, DC voltage, and DC current |
| Indicator: | 5.7” TFT color LCD (320 × 240 dots)
with backlight, no contrast adjustment |
| No. of Keys: | 8 |
| Function: | Use to select various screens and set various parameters. |
