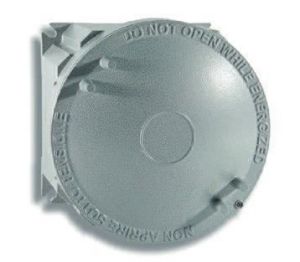

CCAE CORTEM
Junction box
The CCA…E series junction boxes are recommended for fitting with terminals given that they provide more room, making it easier for operators to gain access. On the other hand, the smaller wall area means drilling options are limited. The quality of this product is recognized and valued the world over for its specific aluminium alloy and the mechanical properties of its finishes. The CCA…E series is employed where group IIC gases are present and is mostly used as a box to carry terminals, fuse carriers, transformers, reactors and barriers, though it is also used to produce control and signalling boards, light and power boards and motor starter boxes with different configurations, which are specially custom made to the requirements of our customers worldwide. The CCA…EH series features a threaded lid with a tempered glass viewing window.
KEY FEATURES:
- Group IIC.
- Choice of 5 sizes.
- Screw-on lid with safety fastening grub screw.
- IP66.
Body and cover in low copper content aluminium alloy. Internal/external stainless steel earth screws Fixing lugs. RAL 7035 polyester coating. Gasket resistant to acids, hydrocarbons and high temperatures, located between body and lid.
TECHNICAL SPECIFICATIONS:
| CERTIFICATION DATA |
Classification: Group II Category 2GD Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust) Marking: II 2 GD – Ex db IIC Gb – Ex tb IIIC Db – IP66 Certification: ATEX CESI 01 ATEX 034U IEC Ex CES 14.0012U All IEC Ex, UKEX, ECASEx, TR CU certification data can be downloaded from www.cortemgroup.com UKEX AVAILABLE ECASEx AVAILABLE TR CU AVAILABLE Standards: CENELEC EN 60079-0: 2018, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE Ambient Temp.: -20°C +60°C Standard temperature on all CCAE boxes. -60°C +150°C Special temperature. Degree of protection: IP66 |
| MECHANICAL FEATURES |
Body and lid: Low copper content aluminium alloy. Screw-on lid with safety fastening grub screw Gasket: Resistant to acids, hydrocarbons and high temperatures, located between body and lid Certification label: Adhesive label located inside on empty enclosures; aluminium label riveted onto body on other versions Bolts and screws: Stainless steel Earth screws: Stainless steel. On inside and outside of body complete with anti-rotation brackets Mounting: Cast aluminium feet Coating: Polyester coating RAL 7035 (Light grey) : The STANDARD of the aluminium alloy used by Cortem has passed the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11 (salt mist tests) |
| ELECTRICAL FEATURES |
Rated voltage: 24 / 800 V Rated frequency: 50 / 60 Hz Modular terminals Terminal cross-sectional area: 2.5; 4; 6; 10; 16; 25; 35; 70; 95; 120; 185; 240 [mm2] Rated current: 12.5 – 400 [A] Max. current density: 1.65 – 7 [A/mm2] Multi-pole terminals Terminal cross-sectional area: 3×16; 4×16; 3×25; 4×25; 3×40; 3×40; 4×40; 3×70; 4×70; 3×125; 3×200; 4×200; 3×315 [mm2] Rated current: 48 – 252 [A] Max. current density: 0.8 – 3 [A/mm2] |
