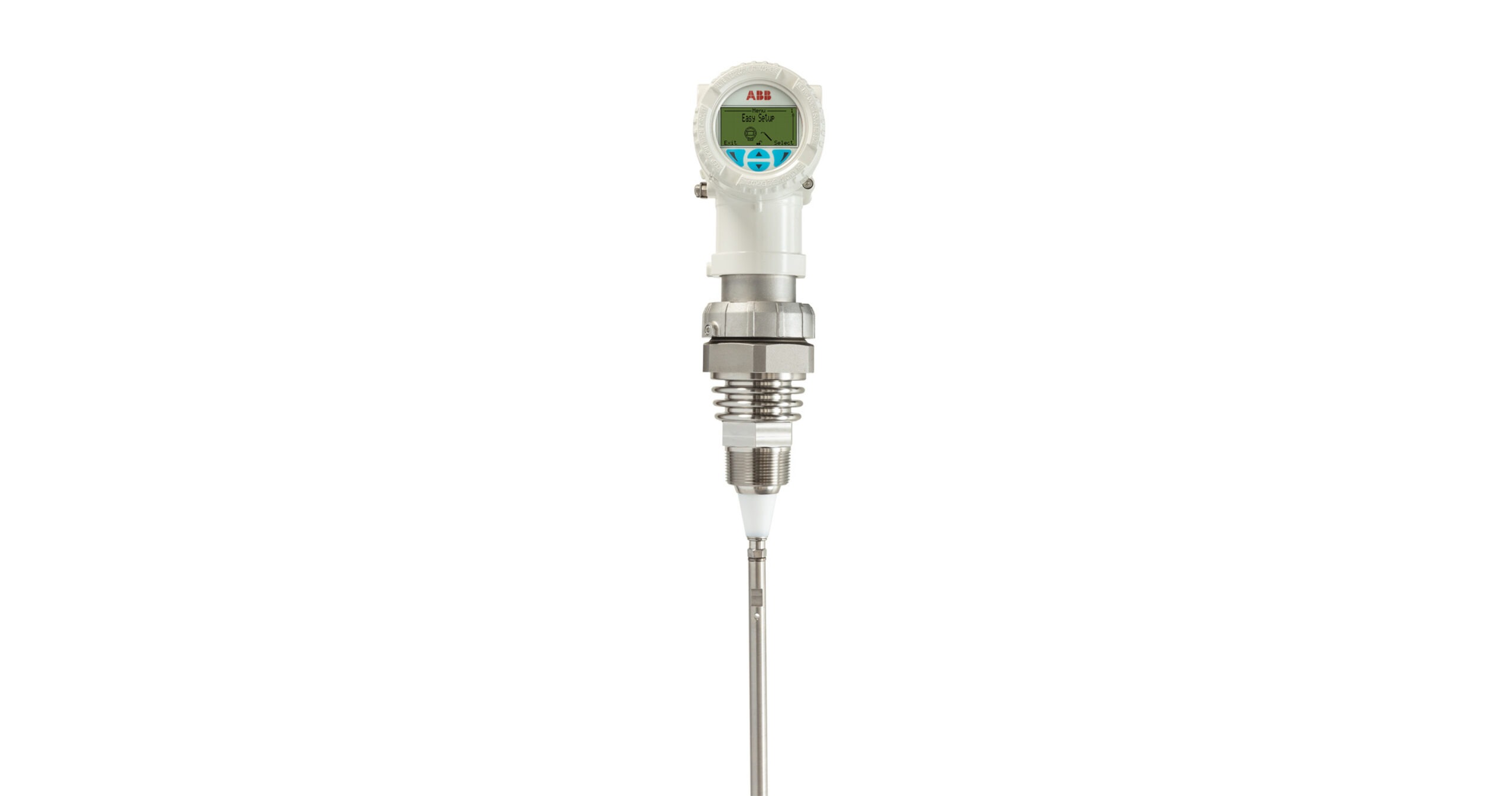

Guided wave radar LWT300 series ABB
Unlike traditional guided-wave radars that use device parameters requiring multiple adjustments, the LWT300 series of instruments does it for you.
The instrument uses LevelExpert™, a built-in intelligence to differentiate between the actual level and other false signals.
LevelExpert concentrates 20 years of industrial level measurement experience into an intelligent instrument made to accurately detect levels, even in the most demanding conditions.
Forget about baseline mapping and echo selection; LevelExpert knows how to find the right level through the clutter. The expert is now inside your guided-wave radar.
LWT300 series instruments cover a wide range of applications. They can meet your needs for applications up to 200 °C (392 °F) and 200 bars (2900 psi).
Guided wave radar LWT300 series ABB:
| Technical specifications: | |
| Accuracy | 2 mm (5/64 in) or 0.03 % |
| Resolution | 1 mm (3/64 in) |
| Temperature drift (digital) | 0.001 %/°C |
| Range | 60 m (197 ft) |
| Update rate | 5 Hz |
|
Temperatures
|
Ambient operating –40 to 80 °C(-104 to 176 F) Process |
|
Process pressure
|
207 bar at 38 °C/3000 psi at 100 °F 83 bar at 204 °C/1200 psi at 400 °F |
| Dielectric constant | 1.4 (minimum) |
|
Process viscosity
|
Coaxial probe: 500 cp Single probe: 10,000 cp |
| Power supply | 15.5 to 42 V DC |
|
Power consumption
|
56 mW (@ 15.5 V, 3.6 mA) 325 mW (@ 15.5 V, 21 mA) |
| Line resistance | 1740 Ω (maximum @ 36 V, 21 mA) |
|
Enclosure material
|
Powder coated aluminum or 316 L stainless steel |
| Protection class | IP68/NEMA 6P |
|
Process connections
|
Threaded 3/4 in. (LWT310) or 1 1/2 in. (LWT320) Flanged |
|
Display
|
Integrated 128 × 64 pixels liquid crystal display (LCD) with through-the-glass (TTG) interface |
|
Wetted materials
|
Duplex 2205 stainless steel Super duplex 2507 stainless steel C-276 alloy 304L stainless steel 316L stainless steel |
