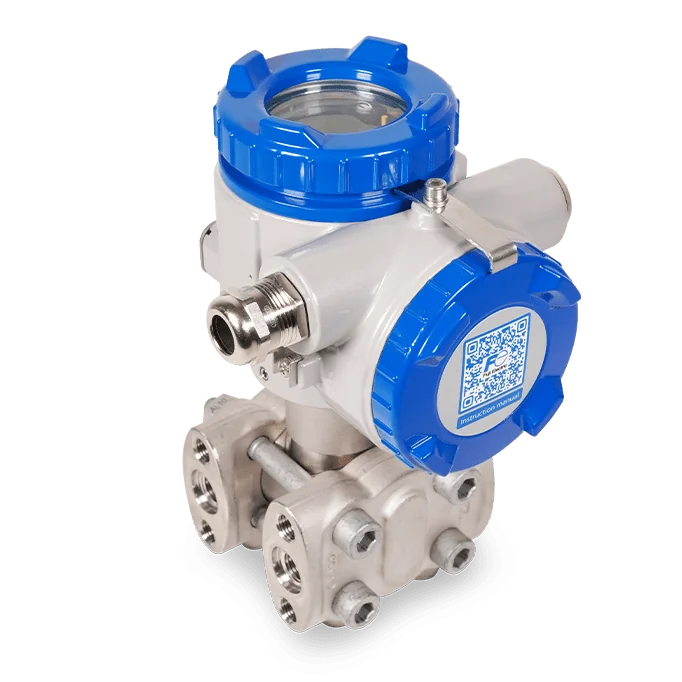

Differential pressure transmitter FKC FUJI ELECTRIC
Differential pressure measurement
Fields of application
The differential pressure transmitter FKC is used in various applications such as level measurement, flow measurement, density measurement, filtration and interface measurement.
Key Features
- High measurement accuracy
- Measurement of very low and very high static pressures
- Resistant to extreme temperatures and harsh environments
The FCX-AIV family of FKC pressure transmitters precisely measures differential pressure, liquid level or flow, and converts it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer with a proven track record in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with IEC 61508 and IEC 61511 standards.
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 1 6 32 130 500 3000 20000 |
| Weight per kg (without indicator) | 3,1 |
| Accuracy | ± 0.065% of the measurement range set as standard. An accuracy of ±0.04% is also available as an option. |
| Materials in contact with the process | Stainless steel 316 L, Hastelloy-C, Monel, Tantalue, Stainless steel 316 L + Gilding, Monel coating, Tantalue coating |
| Case materials | Low-copper aluminum alloy with polyester coating, or 316 L stainless steel |
| Membrane materials | Stainless steel 316 L Hastelloy-C Monel Tantalum Stainless steel 316 L and Gilding Gilding and Ceramics |
| Stability | ±0.1% of maximum scale for 10 years for digit 6 = 3, 5, 6, 8 and 9. |
| Elevation / Deletion | From -100 to +100% of maximum scale |
| Scale setting range | 1 to 1/100 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From +40° to +120°C (versions for higher temperatures are available) |
| Ambient temperature | From -40° to +85 °C |
| Power supply | 10.5 to 45 V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable between 0.04 and 32 secs |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20x1.5″ / 1/2 – 14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
