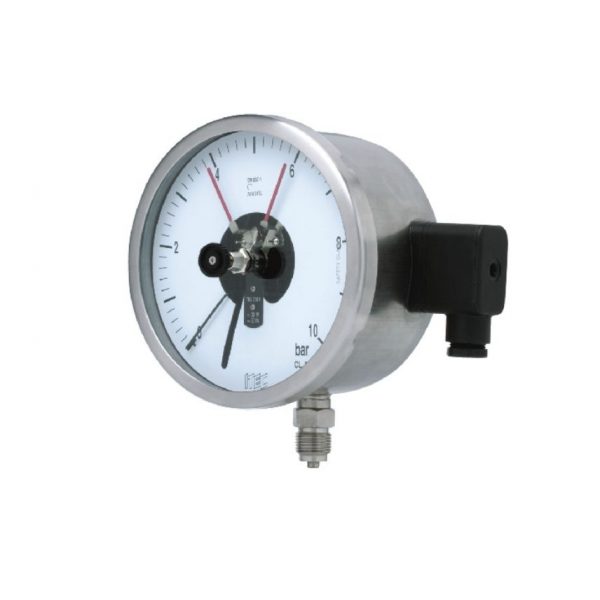

ALL STAINLESS STEEL PRESSURE GAUGE WITH ELECTRIC CONTACT P502 ITEC
Features:
– All SS measuring system
– Socket-case, direct welded
– Magnetic, Inductive and Electronic contacts
– Dry/liquid filled
Application:
– Pumps & motor controls
– Water treatment plants
– Hydraulic & pneumatics
– Chemical & petrochemicals
– Pharmaceutical industries
– HVAC & compressor industries
– Refrigeration
Technical Specifications:
| Size | 100 mm ,150 mm |
| Accuracy | 1,0% – EN837-1 |
| Process connection material | 316L Stainless steel |
| Process connection location | Lower, lower back |
| Process connection size | ¼” NPT M, ½” NPT M, ¼” BSP M, ½” BSP M |
| Mounting | Flush, stem, surface |
| Element material | 316L Stainless steel |
| Movement | Stainless steel |
| Case/Ring | SS304 std. (SS316 option) |
| Case style | Open front, blow out back |
| Pressure ranges | -1/0 to 1600 bar |
| Contact device (switch) | Magnetic, Inductive, Electronic |
| Window | Safety glass |
| Dampening | Liquid fill (option) |
