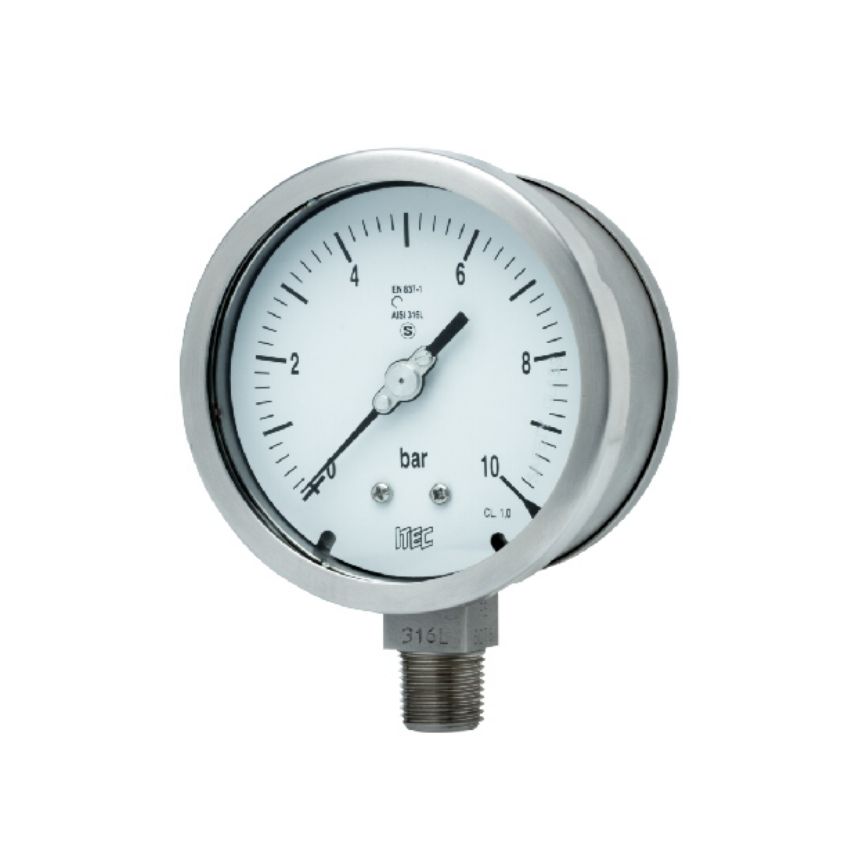

ALL STAINLESS STEEL SOLID FRONT PRESSURE GAUGE P201 ITEC
Features:
– Safety pattern type / Solid front
– All SS measuring system
– Socket-case, direct welded
– Dry/liquid filled
– CE marking / ATEX
Application:
– Liquid & gaseous mediums
– Corrosive enviroments
– Oil & Gas applications
– Chemical & Petrochemical
– Food & Beverages
– Nuclear power plants
Technical Specifications:
| Size | 100 mm, 150 mm |
| Accuracy | 1,0% – EN837-1 (0,6% option) |
| Process connection material | 316L Stainless steel (Monel option) |
| Process connection location | Lower, lower back |
| Process connection size | ¼” NPT M, ½” NPT M, ¼” BSP M, ½” BSP M |
| Mounting | Flush, stem, surface, 2″ pipe |
| Element material | 316L Stainless steel (Monel option) |
| Movement | Stainless steel |
| Case/Ring | SS304 std. (SS316 option) |
| Case style | Solid front, full blow out back |
| Pointer | Adjustable |
| Pressure ranges | -1/0 to 2100 bar |
| Wheather protection | IP67 |
| Window | Safety glass |
| Dampening | Liquid fill (option) |
