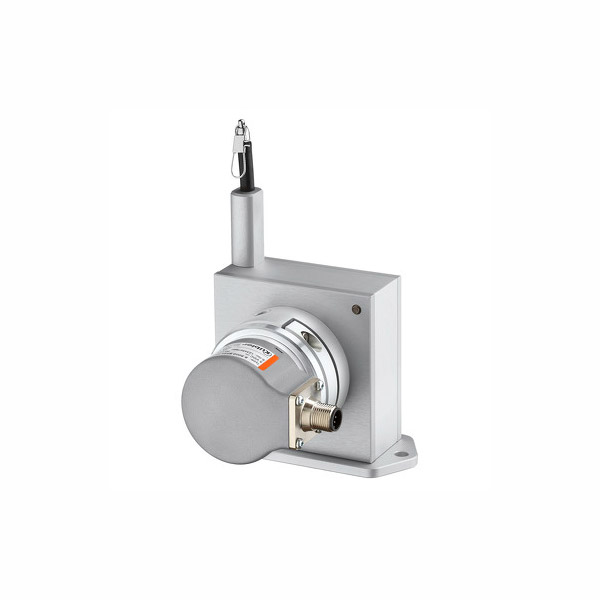

Kuebler draw wire encoder B80
- Precise measuring
- High dynamics
- Simple mounting
- Encoder freely selectable
- Interchangeable installation for encoders
- Measuring length 3 m
- Speed 10 m/s
- max. Linearity ±0,02 %
The B80 draw-wire encoder can be used up to a measuring length of 3 meters.
This draw wire can be combined with the proven Kübler Sendix encoders with incremental or absolute interface as well as with analog sensors.
Descriere
| Mechanical | |||
| Measuring system | Draw-Wire Encoders | ||
| Measuring length | 1 m 2 m 3 m |
||
| Speed | 10 m/s | ||
| Dimension | 80 mm x 80 mm x 144 mm | ||
| Working temperature | -20 °C … +90 °C | ||
| Weight | 750 g | ||
| Electrical | |||
| max. Linearity | ±0,02 % | ||
| Interfaces | Analog 0–10 V EtherNet/IP CANopen EtherCAT Push-pull TTL / RS422 SAE J1939 SinCos PROFIBUS DP PROFINET IO SSI, binary BiSS |
||
| Supply voltage | 12…30 V DC | ||
