Cashco 1078
Tank Blanketing

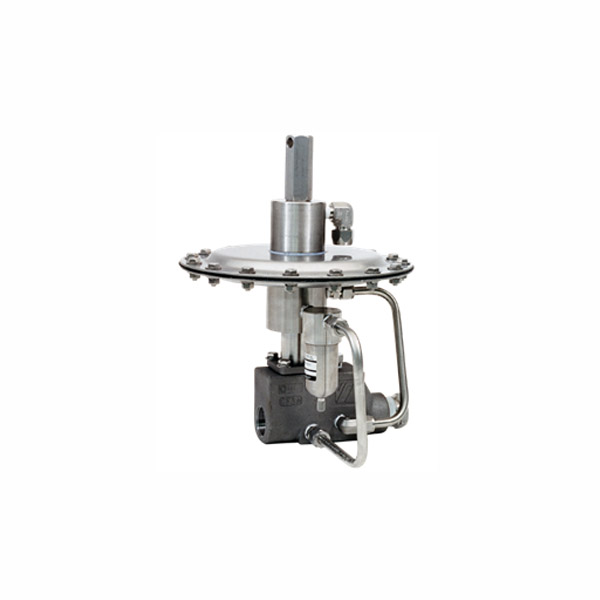

The Model 1078 is a pilot-operated valve, specifically designed to reduce blanketing gas losses on lowpressure storage tanks. It opens and closes automatically as required, to maintain a closely controlled blanket pressure. The simple design, increases reliability and lowers maintenance cost.
The Vacu-Gard® set point definition is where the blanketing valve closes bubble tight. This gives the largest dead band between the blanketing valve set point and the set point of the relieving device, and therefore will reduce losses. Also, the Vacu-Gard® has a wide range of available settings, from vacuum to 14 psig, that make proper selection easier.
| Body Sizes: | 1″, 2″ |
| Materials_Body: | CS, SST |
| Materials_Spring Chamber: | N/A |
| End Connections: | NPT, FLANGED |
| Temperature Range: | -325 to 400F |
| Inlet Pressures Range: | 20 to 200 PSIG |
