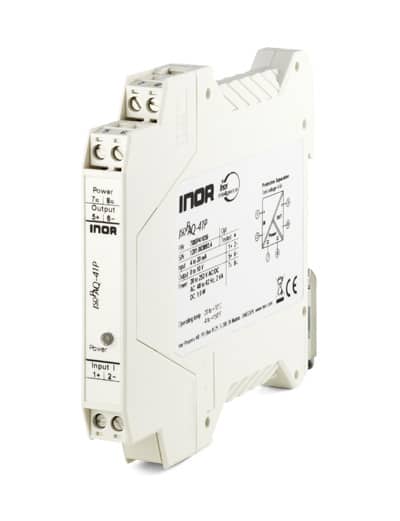

IsoPAQ-41P INOR
High-performance Isolation Transmitter for Unipolar mA/V Signals with Fixed Ranges
The Isolation Transmitter IsoPAQ-41P is used for high-precision
isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar
signals.
For applications where normally only one signal combination is used,
IsoPAQ-41P offers a cost-effective alternative.
The high reliability and the Protective Separation are additional
features that ensure a safe system operation.
Key Features:
- Fixed ranges
- Protective Separation acc. to EN 61140
- High accuracy
- Universal power supply for 20 to 253 VAC/DC
- 3-port isolation
- High-density DIN-rail mounting
- Plug-in screw terminals
- Excellent reliability
Technical Specifications:
| Type of input | Active |
| No. of channels | 1 channel |
| Input signal | 0…20 mA 4…20 mA 0…10 V |
| Output signal | 0…20 mA 4…20 mA 0…10 V |
| Configuration | Fixed ranges |
| Typical accuracy | 0,1 % FS |
| Isolation level | 4 kV, 50 Hz |
| Working voltage | 600 VAC/DC |
| Power supply | 20…253 VAC/DC |
| Protective separation | Yes |
| Cut-off frequency (-3 dB) | > 1 kHz |
| Ambient temperature | 20…+70 °C |
| Plug-in screw terminals | Yes |
| Housing width | 12,5 mm |
| Installation depth | 104 mm |
