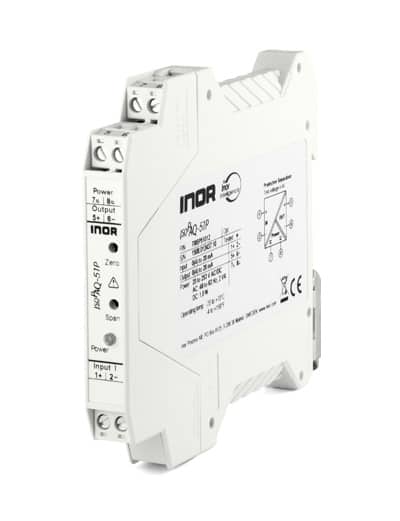

IsoPAQ-51P INOR
High-performance Isolation Transmitter for Unipolar mA Signals with Fixed Range and Zero/Span Adjustment
The Isolation Transmitter IsoPAQ-51P is used for high-precision isolation of 0(4)-20 mA unipolar signals. For applications where normally only one signal combination is used, IsoPAQ-51P offers a cost-effective alternative.
The zero and span adjustments allow for a fine-tuning of the measurement loop. The high reliability and the Protective Separation are additional features that ensure a safe system operation.
Key Features:
- Fixed ranges
- Zero/Span Adjustment
- Protective Separation acc. to EN 61140
- High accuracy
- Universal power supply for 20 to 253 VAC/DC
- 3-port isolation
- High-density DIN-rail mounting
- Plug-in screw terminals
- Excellent reliability
Descriere
Technical Specifications:
| Type of input | Active |
| No. of channels | 1 channel |
| Input signal | 0(4)…20 mA |
| Output signal | 0(4)…20 mA |
| Configuration | Fixed ranges |
| Typical accuracy | 0,1 % FS |
| Isolation level | 4 kV, 50 Hz |
| Working voltage | 600 VAC/DC |
| Power supply | 20…253 VAC/DC |
| Protective separation | Yes |
| Cut-off frequency (-3 dB) | > 1 kHz |
| Ambient temperature | 20…+70 °C |
| Plug-in, screw terminals | Yes |
| Housing width | 12,5 mm |
| Installation depth | 104 mm |
