Cashco 987

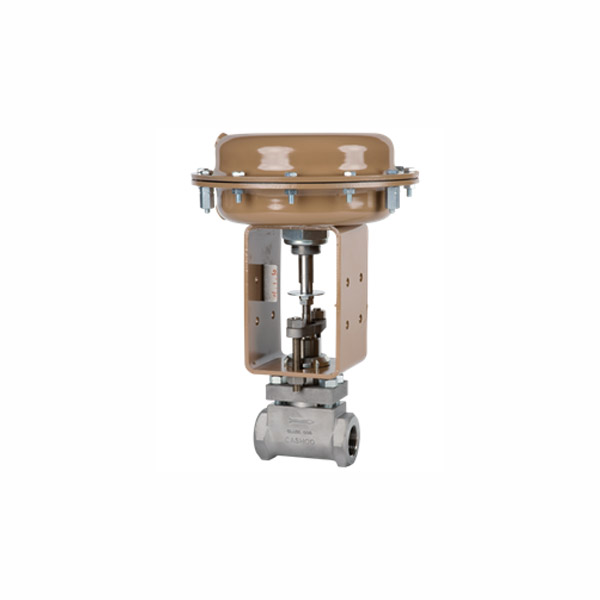

The Model 987 is a compact, economical, sliding stem, globe-style control valve designed primarily for general or chemical service. Use of investment body casting consolidates both carbon steel and stainless steel applications into the standard 316LSST (CF3M) material. The valve body and trim material is also available in Hastelloy C® con struc tion.

Standard trim is metal seated design giving Class IV shutoff. Optional composition seat design gives Class VI shutoff.
Avail able in body sizes 1/2″ through 1″ (DN15–DN25). End connections available: NPT, extended pipe nipples, flanged or flangeless.
Body Sizes: 1/2″,3/4″ 1″
Maximun CV: 6.95
Materials_Body: SST, HC
End Connections: NPT, FLANGED, EXTENDED NIPPLES,FLANGELESS
Temperature Range: -20 to 500F
Inlet Pressures Range: UP to 1440 PSIG

Categories , Markets ,

Download Technical Data
