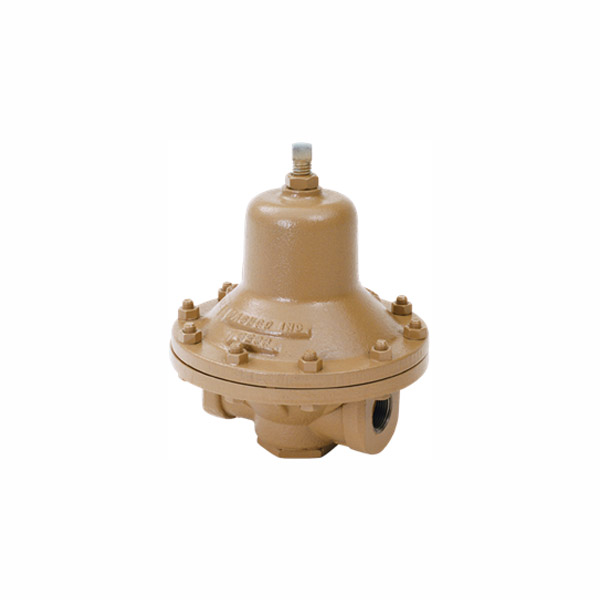

Cashco D/DL
One of the most versatile regulators on the market, the Model D can be used for steam, air, water, chemicals and more. Some of the most used applications include steam, air, ink, O2 (ambient), O2 (cryogenic), and NACE service. For larger sizes, see the Model DL.
Model DL is a redesignation of the former Model D product, limited to 1-1/2″ & 2″ (DN40 & 50) body sizes. The Model DL is a basic, general service, self-contained regulator. Unit handles inlet pressure of up to 300 psig (20.7 Barg) and outlet pressures from 2-150 psig (.14-10.3 Barg) in multiple spring ranges.
Used in all types of fluids, including sour gas, industrial gases, chemicals, as well as the common industrial fluids – water, oil, steam and com pressed air.
| Body Sizes: | 3/8″, 1/2″, 3/4″, 1″ |
| Maximun CV: | 4 |
| Materials_Body: | CI, BRZ, CS, LCC, SST |
| Materials_Spring Chamber: | CI, BRZ, CS, LCC, SST |
| End Connections: | NPT, FLANGED, BSP, EXTENDED NIPPLES |
| Temperature Range: | -325F to 400F |
| Inlet Pressures Range: | UP to 400 PSIG |
