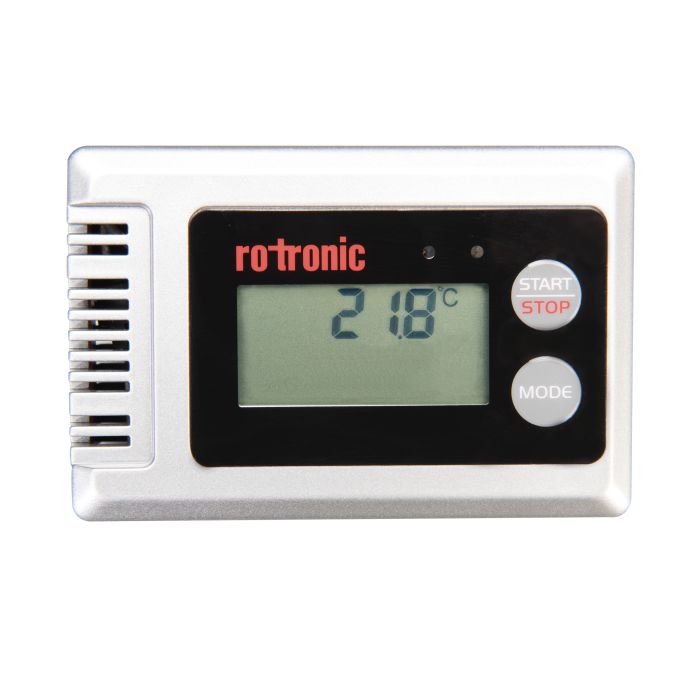

Data Logger for Temperature HygroLog TL-1D ROTRONIC
Compact Low Cost Logger
The TL1D is a compact, low cost data logger for temperature. The internal memory can store up to 32,000 data points and includes the HygroSoft software.
Features
- • High measurement accuracy of ±0.3 °C
• Compact design with high IP protection
• Large storage capacity: 32,000 data points memory
• Programmable start and stop time with Hygrosoft software
• MIN/MAX/AVG statistical function
• Clear LCD with visual alerts
• Long enough battery life (up to 3 years)
• The software complies with FDA 21 CFR Part 11 / GAMP 5
• HygroLog TL-1D meets the requirements of the EN 12830 standard
• Includes HygroSoft software application for configuration, visualization and data export.
Technical Specifications:
| Temperature sensor | NTC |
| Accuracy at 23 ±5 °C | ±0.3 °C |
| Power consumption | 1x CR2 battery |
| Dimensions | 90 x 60 x 23 mm |
| Display type | LCD, 2 lines |
| Battery indicator | Yes |
| IP protection rating | IP67 |
| FDA/GAMP compatibility | FDA 21 CFR Part 11 / GAMP 5 conform software HW4 |
| Measurement interval | 30 s…24 h |
| Communication interfaces | Mini USB |
| Weight | 85 g |
| HW4 compatible | V3.4.1 and higher |
| Battery lifetime | 3 years (at a logging interval of 1 h) |
| Storage capacity | 32,000 data point memory (T) |
| Display refresh rate | 5 sec. (Standard) (when logging same refresh rate as log interval) |
| LED indicator | 2 LEDs Right LED flashes green during data logging Left LED flashes red when alarm limits breached or low battery |
