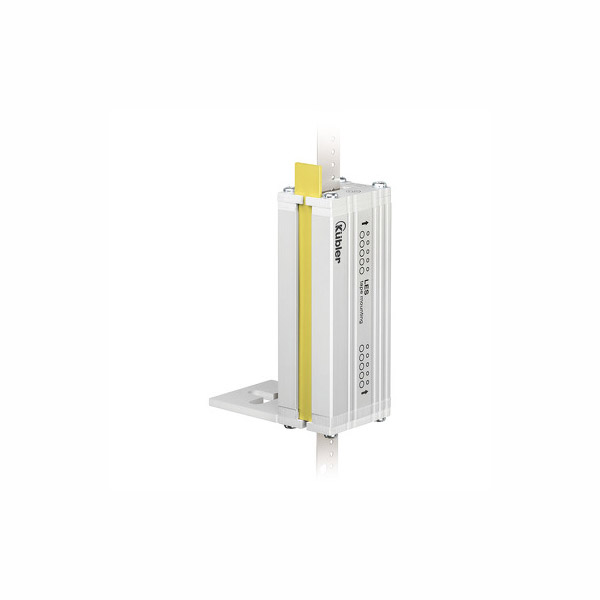

Kubler linear mesuring LES01
Ants LES01
- SIL3, EN 81-20/50
- 100% slip-free
- Extremely robust
- Maximum compact
- Simple mounting
- Measuring length 392 m
- Speed 5 m/s
- Resolution max. 1 mm
- Accuracy 1 mm
Data sheet
Shaft copy system – safe and absolute positioning of the elevator car.
Absolute position acquisition, SIL3. Ants LES01 is an extremely robust, compact measuring system. With a resolution of 1 mm and a travel speed of 5 m/s, absolute position values of the car are determined slip-free using a contactless measuring principle. No additional components such as magnetic switches are necessary. Simple assembly especially reduces installation times and thus contributes to the reduction of the overall costs.
| Mechanical | |||
| Measuring system | Shaft copying systems | ||
| Measuring length | 392 m | ||
| Speed | 5 m/s | ||
| Dimension | 135 mm x 45 mm x 33 mm | ||
| Working temperature | -5 °C … +70 °C | ||
| Protection level | IP30 | ||
| Weight | 240 g | ||
| Electrical | |||
| Resolution max. | 1 mm | ||
| Accuracy | 1 mm | ||
| Interfaces | CAN | ||
| Supply voltage | 10…30 V DC | ||
