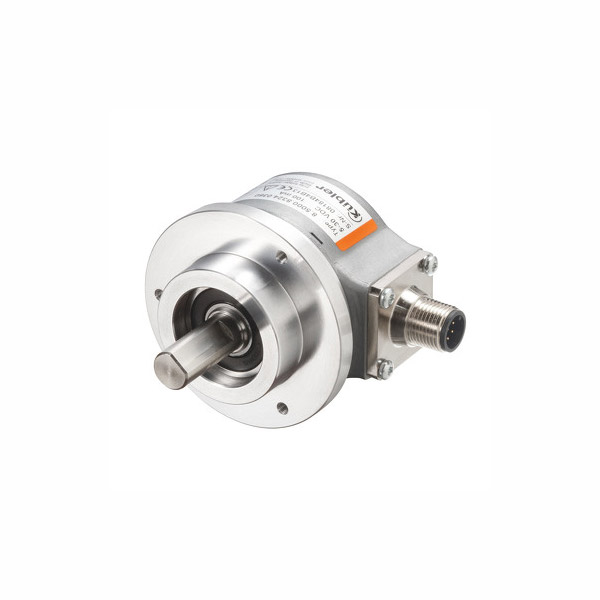

Kubler Sendix 5000

The Standard Encoder for automation.

Sendix 5000 / 5020 incremental encoders offer special resistance to vibrations and installation error due to their robust bearing construction using the Safety Lock™ design. The stable die-cast housing, the high protection up to IP67 and the wide temperature range from -40°C to +85°C allow universal use. This family of encoders is subject to continuous technical development and now offers a unique variety of ordering options. Special highlight: The 24one delivery commitment: We manufacture your desired encoder in 24 hours. This free service affords you planning reliability and maximum system availability.

  • Unique variety of variants
  • Particularly resilient
  • 24one delivery commitments
  • Dimension Ø 50 mm
  • 5.000 ppr Incremental
  • Max 12 mm Shaft, with flat surface

Categories , Markets ,

Mechanical
Dimension Ø 50 mm
Shaft type Max 12 mm Shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange
Euro flangeØ 50.80 mm
❏ 52.30 mm
Ø 58.00 mm
Ø 63.50 mm
❏ 63,50 mm
Ø 115.00 mm
Working temperature -40 °C … +85 °C
Protection level IP65
IP66
IP67
Connections Axial cable
Radial cable
M23 connector
M23 connector radial
M12 connector axial
M12 connector radial
MIL plug connector
Speed 12.000 min-1
Weight 400 g
Electrical
Scanning optical
Resolution max. 5.000 ppr Incremental
Supply voltage 5 V DC
5…30 V DC
10…30 V DC
Interfaces Push-pull
TTL / RS422
Open Co

Download Technical Data
