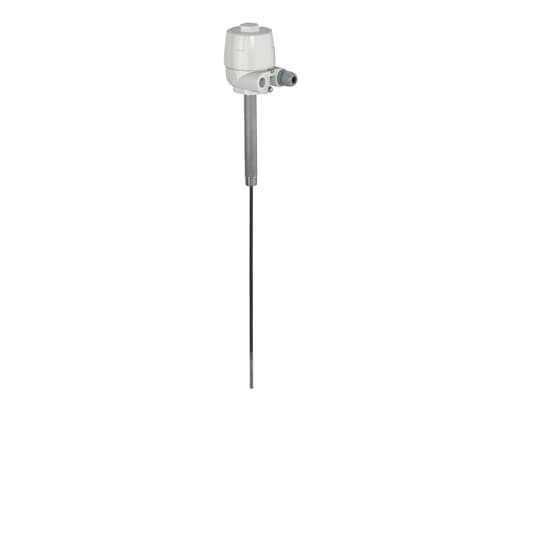

Temperature sensor SensyTemp TSP300 ABB
Temperature sensors for heavy duty application.
Main application for this heavy duty RTD or thermocouples temperature sensors is the pipe an tank engineering in high process requirements (e.g. offshore). It communicate with FOUNDATION Fieldbus, PROFIBUS PA, HART, 4 … 20 mA or direct sensor output.
SensyTemp TSP300 series sensors allow for measuring inset replacement during operation. With their short response time and high vibration resistance these devices meet the most demanding process requirements.
Temperature sensor SensyTemp TSP300 ABB
| Modular design equals flexible | – Thermowell, extension tube, connection head, transmitter – Exchangeable measuring inset TSA101 |
| Connection heads | – AGL: Aluminum, with screw-on cover – AGLH: Aluminum, with upper screw-on cover – AGLD: Aluminum, with screw-on cover and LCD indicator type A / AS – AGS: Stainless steel, with screw-on cover – AGSH: Stainless steel, with upper screw-on cover – AGSD: Stainless steel, with screw-on cover and LCD indicator type A / AS |
| Transmitter in connection head |
– 4 to 20 mA, HART – PROFIBUS PA 3.01 |
| Explosion protection Temperature sensor SensyTemp TSP300 | Suited to explosion protection, intrinsic safety |
