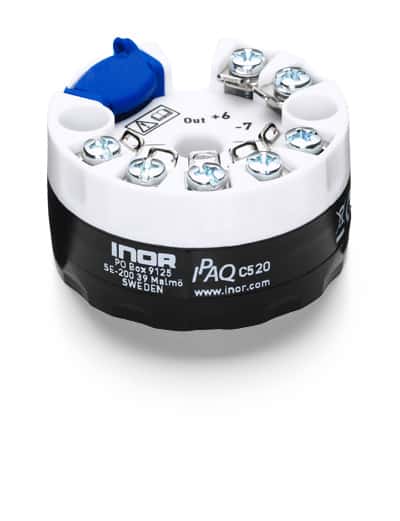

IPAQ C520 INOR
HART Compatible Universal Dual-input 2-wire Transmitters
The IPAQ C520 transmitters are universal, isolated, dual-input temperature transmitters with additional voltage and resistance input. The IPAQ C520N is approved for Non-Incendive use in Ex-Zone 2. C520X/C520XS are Intrinsically Safe versions for use in Ex-Zone 0, 1 and 2.
The transmitters are compatible with the HART 6 protocol. Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.
KEY FEATURES:
- Universal, dual-input for RTD and T/C
- SIL 2 compatible according to IEC 61508-2
- 5 year guaranted stability
- Withstands 10 g vibrations
- Complies with NAMUR NE 21, NE 43, NE 53, NE 89 and NE 107
- EMC immunity according to Criteria A
- Sensor Backup
- Sensor Drift Monitoring
- Sensor Isolation Monitoring
- Sensor matching
- 50 point customized linearization
- Integrated in Emerson AMS and Siemens PDM systems
Technical Specification
| Type | Head-mounted |
| Input | RTD; Thermocouple; Universal |
| Input RTD | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Cu10 |
| Input Thermocouple | Type B, C, D, E, J, K, N, R, S, T |
| Type Of Transmitter | Digital |
| Output | 4-20 mA; HART® |
| Isolation | Isolated |
| Measuring channels | 2 channels |
| Input connections | 2-, 3-, 4- wire connection |
| Power supply | IPAQ C520/C520S: 10 to 36 VDC; IPAQ C520X/C520XS: 10 to 30 VDC |
| Approvals | ATEX, IECEx, SIL2 |
| Typical accuracy | RTD: Max. of ±0.1 °C or ±0,05 % of span; TC: Typical ±0.05 of span |
| Quick delivery | Yes |
